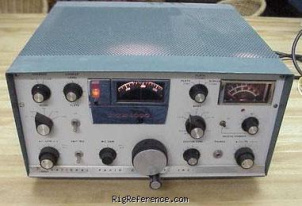

National Company NCX-1000

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

1500 Hz first 30 min, after that 400 Hz at room temperature

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m

Modulations

AM   CW   SSB

Sensitivity

0.5µV (10dB S/N)

Selectivity

SSB: 2.8 kHz (-6 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

2W @ 3.2 ohms

Transmitter

TX-range

10-80 m

Modulations

AM   CW   SSB

RF-output

AM: 300 W, SSB: 570 W (PEP), CW: 570 W

Connections

Antenna

Clamps / screws

Impedance

25/100 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 19xx and 19xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3654

MPN

NATIONAL-COMPANY-NCX-001000

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used National Company NCX-1000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
