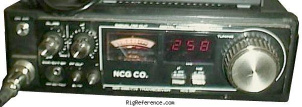

The NCG 15M is a Mobile Transceiver. It covers the frequency range of 21.0-21.45 MHz for both transmit and receive. The RF output power is selectable between High: 10 W and Low: 2 W. It requires 13.8V DC power and has a maximum current drain of 3 A during transmit.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 21.0-21.45 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 21.0-21.45 MHz
- Modulations
- CW SSB
- RF-output
- High: 10 W, Low: 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 3 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3685
- MPN
- NCG-000015M
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
