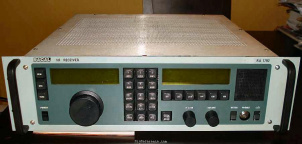

The Racal RA-1792 is a desktop shortwave receiver covering 0.01-30 MHz. It features remote control and an ISB option. Power requirements are Mains. The unit weighs 15 kg and has dimensions of 133 × 483 × 500 mm. Current drain in receive mode is Max 60 W.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.01-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- Max 60 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 483 × 133 × 500 mm (19.02 × 5.24 × 19.69 in)
- Weight
- 15.00 kg (33.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1980 and 1990 in Great Britain
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Remote control. ISB option
- Accessories
- -
- RigReference ID
- 3698
- MPN
- RACAL-RA-001792
