Siemens 745 E309b

Desktop Shortwave receiver

Specs Manuals (0) Reviews (2) Prices (2) Compare

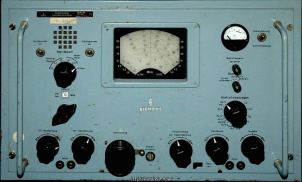

Front view (Courtesy of Heinrich Busch) - Submitted by elmer

Find Siemens 745 E309b rigs and spare parts on eBay

Find the Siemens 745 E309b on Amazon

The Siemens 745 E309b is a desktop shortwave receiver. Frequency range is 255-525 KHz / 1.5-30.3 MHz. Receiver system utilizes 14 tubes. The radio weighs 38 kg and has dimensions of 355 × 550 × 407 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 255-525 KHz / 1.5-30.3 MHz
Modulations: AM CW
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: 14 tubes
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: 60 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 550 × 355 × 407 mm (21.65 × 13.98 × 16.02 in)
Weight: 38.00 kg (83.8 lbs)
Form factor: Base Station
Manufactured: Between 195x and 19xx in Germany

Other features

Usage: Marine / Navy
Features + options: -
Accessories: -
RigReference ID: 3961
MPN: SIEMENS-000745-E309B

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Rating	Title	Submitted
	topper	10 years ago by ervik
	goede ontvanger	10 years ago by ervik

View all Siemens 745 E309b reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Siemens 745 E309b. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Siemens 745 E309b is around:

EUR 102.00 ~ EUR 71.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2014	EUR 225.00	Used / Okay	ervik
2014	EUR 325.00	Used / Good	ervik
