Sommerkamp IC-2F

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Sommerkamp IC-2F rigs and spare parts on eBay

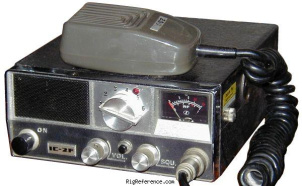

The Sommerkamp IC-2F is a VHF transceiver. It covers 144-146 MHz for both receive and transmit. The RF output is 10 W. It features 1 memory bank with 6 channels. Power requirements are 12-14.5V DC. Dimensions are 60 × 160 × 180 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 6 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ? conversion superheterodyne, XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 10 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12-14.5V DC
Current drain RX: 600 mA
TX: Max 3 A

Physical

Dimensions (w×h×d): 160 × 60 × 180 mm (6.30 × 2.36 × 7.09 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Unknown
Manufactured: Between 197x and 197x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3984
MPN: SOMMERKAMP-IC-000002F
