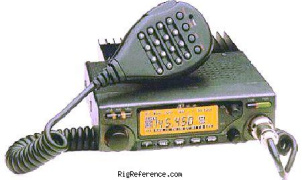

The Sommerkamp TS-147DX is a Mobile VHF Transceiver. It covers 118-136 MHz for reception and 144-146 MHz for transmission. The radio has an RF output of High: 50 W, Medium: 25 W, Low: 7 W. It features 1 memory bank with 80 channels. The TS-147DX includes DTS, CTCSS and DTMF options. Dimensions are 40 × 140 × 166 mm. It requires 13.8V DC +/-15%. Current drain is Max 600 mA in receive mode and Max 11 A in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 80 channels in 1 bank(s)
Receiver
- RX-range
- 118-136 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 25 W, Low: 7 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Max 600 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 166 mm (5.51 × 1.57 × 6.54 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTS, CTCSS and DTMF options
- Accessories
- -
- RigReference ID
- 3988
- MPN
- SOMMERKAMP-TS-000147DX
