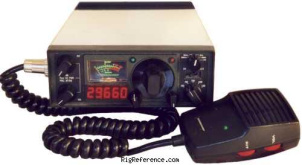

Also known as "The coffeewarmer" Microphone is switchable for use as a speaker-mike. This is an interesting feature I've never seen before in a mobile radio. Very useful in a noisy vehicle.
General characteristics
- HAM bands
- 10m
- Frequency stability
- ?
- Tuning steps
- 100 / 10 / 1 / 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 26-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >50 dB
- Audio output
- ?
Transmitter
- TX-range
- 26-30 MHz
- Modulations
- AM FM CW SSB
- RF-output
- High: 100 W (25 W AM), Low: 20 W (5 W AM)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 156 × 61 × 290 mm (6.14 × 2.40 × 11.42 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3997
- MPN
- SOMMERKAMP-TS-000788DX
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sommerkamp TS-788DX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Sommerkamp TS-788DX is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
