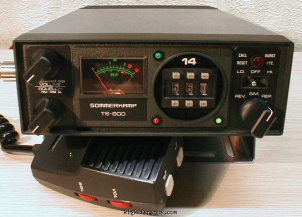

The Sommerkamp TS-800 is a VHF transceiver. It covers 140-150 MHz for both receive and transmit. The rig has a tuning step of 12.5 kHz. RF output is selectable between High: 50 W and Low: 5 W. The Sommerkamp TS-800 requires 11-16V DC. Current drain is 500 mA during receive and max 12 A during transmit. Dimensions are 61 × 156 × 290 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 12.5 kHz
- Memories
- ?
Receiver
- RX-range
- 140-150 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140-150 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- 500 mA
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 156 × 61 × 290 mm (6.14 × 2.40 × 11.42 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4000
- MPN
- SOMMERKAMP-TS-000800
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sommerkamp TS-800. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Sommerkamp TS-800 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
