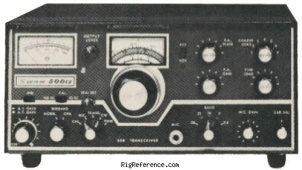

Swan (Cubic) 500CX

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m
3.5-4 / 7-7.5 / 14-14.5 / 21-21.45 / 28-29.7 MHz

Modulations

AM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

? conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-80 m
3.5-4 / 7-7.5 / 14-14.5 / 21-21.45 / 28-29.7 MHz

Modulations

AM   CW   SSB

RF-output

SSB: 550 W (PEP input), CW: 360 W (input), AM: 125 W (input)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

External PSU

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

330 × 130 × 260 mm (12.99 × 5.12 × 10.24 in)

Weight

7.30 kg (16.1 lbs)

Form factor

Unknown

Manufactured

Between 1970 and 197x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4125

MPN

SWAN-(CUBIC)-000500CX
