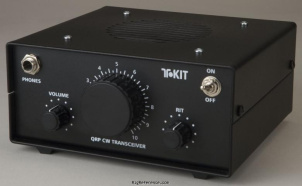

Ten-Tec 1330

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

30 m

Modulations

-

Sensitivity

0.25µV typical for 10 dB S/N

Selectivity

4 pole crystal ladder filter (1 kHz nominal bandwidth)

Filters

?

Receiver system

Single conversion superhet, JFET mixer

IF-frequencies

14.32 MHz

Image rejection

?

Audio output

300 mW @ 4 ohms. Built-in 4" speaker in top of cabinet.

Transmitter

TX-range

30 m

Modulations

-

RF-output

3W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

12-14V DC

Current drain RX

35-80mA

TX

800mA

Physical

Dimensions (w×h×d)

152 × 70 × 152 mm (5.98 × 2.76 × 5.98 in)

Weight

1.02 kg (2.3 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4150

MPN

TEN-TEC-001330
