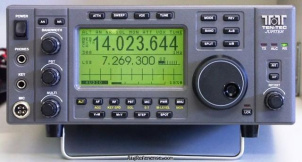

Ten-Tec Jupiter (538)

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

100 channels in 1 bank(s)

Receiver

RX-range

0.1-30 MHz

Modulations

AM   FM   CW   SSB   RTTY

Sensitivity

SSB: 0.35 µV (10 dB S+N/N) @ 3 kHz BW

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>60 dB

Audio output

?

Transmitter

TX-range

10-160 m + WARC and 60 m (5 MHz)

Modulations

AM   FM   CW   SSB   RTTY

RF-output

5-100 W (100% duty cycle)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

12-14V DC

Current drain RX

Max 1.5 A

TX

Max 20 A

Physical

Dimensions (w×h×d)

308 × 127 × 330 mm (12.13 × 5.00 × 12.99 in)

Weight

5.30 kg (11.7 lbs)

Form factor

Unknown

Manufactured

Between 2000 and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

39 IF-DSP filters. Spectrum scope. Auto-ATU option

Accessories

-

RigReference ID

4168

MPN

TEN-TEC-JUPITER-(000538)

Manuals, diagrams and brochures

Ten-Tec Model 538 Operator's Manual PDF - 8.04 MB, submitted by Gerd



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Jupiter (538). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ten-Tec Jupiter (538) in Good condition is around:

• USD 714 ~ USD 811

Price History Chart

These estimates are based on the following prices:
