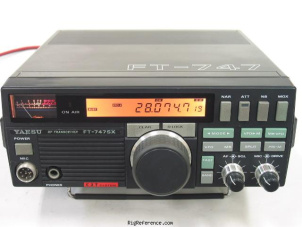

Yaesu FT-747SX

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

RF-output

10 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

238 × 93 × 238 mm (9.37 × 3.66 × 9.37 in)

Weight

?

Form factor

Unknown

Manufactured

Between 1987 and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4337

MPN

YAESU-FT-000747SX
