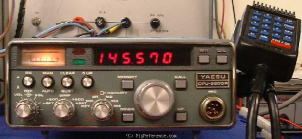

The Yaesu CPU-2500R is a Mobile VHF Transceiver. It covers 144-148 MHz for both transmit and receive with 5 kHz tuning steps. The receiver system is a Double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. RF output is selectable between High: 25 W and Low: 3 W. It requires 13.8V DC ±10% and draws 0.5 A max in receive and 6 A max in transmit. Dimensions are 72 × 180 × 270 mm and the unit weighs 3.2 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.3 µV
- Selectivity
- ± 6 kHz @ -6 dB
± 12 kHz @ -60 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 3 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±10%
- Current drain RX
- 0.5 A max
- TX
- 6 A max
Physical
- Dimensions (w×h×d)
- 180 × 72 × 270 mm (7.09 × 2.83 × 10.63 in)
- Weight
- 3.20 kg (7.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1750 Hz (Europe)
1800 Hz (USA) - Accessories
- -
- RigReference ID
- 4205
- MPN
- YAESU-CPU-002500R
