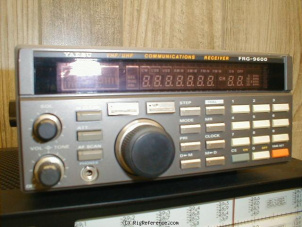

The Yaesu FRG-9600 VHF-UHF receiver covers from 60 to 905 MHz in the following modes: AM, AM-W, FM-W, FM-N, USB and LSB. Seven tuning rates, ranging from 100 Hz to 100 kHz, are available. Enjoy a total of 100 memories organized in ten banks of ten. You may also enter frequencies directly via the numeric keypad or simply tune the manual VFO knob.
General characteristics
- HAM bands
- 2m 1.25m 70cm 4m
- Frequency stability
- ?
- Tuning steps
- 0.1 / 1 / 5 / 10 / 12.5 / 25 kHz
- Memories
- 100 channels in 10 bank(s)
Receiver
- RX-range
- 60-905 MHz (SSB between 60-460 MHz)
- Modulations
- N-AM W-AM N-FM W-FM USB LSB
- Sensitivity
- AM-N: 1 µV (10 dB S+N/N)
AM-W: 1.5 µV (10 dB S+N/N)
FM: 0.5 µV (12 dB SINAD)
W-FM: 1 µV (12 dB SINAD) - Selectivity
- N-FM: 15 kHz
W-FM: 180 kHz
N-AM: 2.4 kHz
W-AM: 6 kHz
SSB: 2.4 kHz - Filters
- 2.4 / 6 / 15 / 180 kHz
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 45.754 MHz
2nd: 10.7 MHz
3rd: 455 KHz - Ceramic filter: Murata CFW455E - Image rejection
- ?
- Audio output
- 1 W @ 8 ohms
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC
- Current drain RX
- 550 mA max
- TX
- -
Physical
- Dimensions (w×h×d)
- 180 × 80 × 220 mm (7.09 × 3.15 × 8.66 in)
- Weight
- 2.20 kg (4.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CAT-interface
Clock-Timer
Headphone jack (and MPX, AF and RF Mute jacks)
Priority
Recorder Activation
Squelch
TV tuner front end
Tone control
Tuning Meter
Telescopic whip antenna included - Accessories
- -
- RigReference ID
- 4223
- MPN
- YAESU-FRG-009600
Manuals, diagrams and brochures
- Yaesu FRG-9600 Operating Manual PDF - 5.77 MB, submitted by RigReference
- Yaesu FRG-9600 Service Manual PDF - 7.63 MB, submitted by Gerd
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great Receiver | 10 years ago by aharink | |
| Its ok to have at the right price. | 12 years ago by Radio10 |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FRG-9600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FRG-9600 is around:
- EUR 74.00 ~ EUR 18.00
- USD 21.00
These estimates are based on the following prices:
