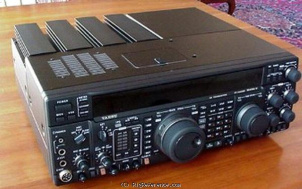

The Yaesu FT-1000MP Mk V is a 10-160 m + WARC transceiver supporting FM/SSB/CW and AM modulations. Maximum RF-output is 200 W PEP for FM/SSB/CW and 50 W PEP for AM. The radio features Twin RX and DSP. It operates on 13.8V DC and weighs 14 kg. Dimensions are 135 × 410 × 347 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- FM/SSB/CW: 200 W, AM: 50 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 410 × 135 × 347 mm (16.14 × 5.31 × 13.66 in)
- Weight
- 14.00 kg (30.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2000 and 2005
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX. DSP
- Accessories
- -
- RigReference ID
- 4228
- MPN
- YAESU-FT-001000MP-MK-V
Manuals, diagrams and brochures
- Yaesu FT-1000mp Technical Supplement PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great rig | 12 years ago by ft1000 | |
| Yaesu FT-1000MP Mark V - HF Transceiver | 14 years ago by ku4gw |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-1000MP Mk V. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-1000MP Mk V is around:
- USD 149.00 ~ USD 156.00
These estimates are based on the following prices:
