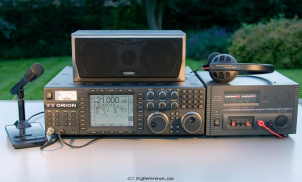

Ten-Tec Orion (565)

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m + WARC and 60 m (5 MHz)

Modulations

AM   FM   CW   SSB   AFSK

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC and 60 m (5 MHz)

Modulations

AM   FM   CW   SSB   AFSK

RF-output

100 W

Connections

Antenna

RCA (Tulip)

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 2002 and 200x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual 32-bit IF-DSP. True diversity reception capability with twin RX. Real-time spectrum display. Built-in keyer. Flash-ROM BIOS.

Accessories

-

RigReference ID

4176

MPN

TEN-TEC-ORION-(000565)

Manuals, diagrams and brochures

Ten-Tec 565 Manual PDF - 878.0 kB, submitted by Tony Fields

Ten-Tec Orion/Orion II Users Manual Addendum PDF - 1.48 MB, submitted by Tony Fields

Ten-Tec 565 Receive Optimization PDF - 22.9 kB, submitted by Tony Fields



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ten-Tec Orion (565). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ten-Tec Orion (565) in Good condition is around:

• USD 1,000 ~ USD 1,530

Price History Chart

These estimates are based on the following prices:
