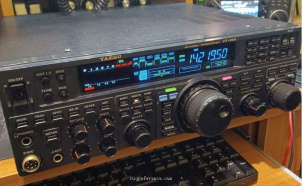

The Yaesu FT-950 is a Desktop HF/VHF Transceiver. It covers a frequency range of 0.03-56 MHz for reception and 10-160 m + WARC / 50-54 MHz for transmission. The RF output power is 5-100 W with a maximum output of 25W on AM. It features IF-DSP, a built-in auto-ATU and keyer. It has 1 memory bank with 99 channels and requires 13.8V DC power. The maximum current drain during transmit is 22A.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-56 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 5-100 W/5-100 W (AM: Max 25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 22 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IF-DSP. Built-in auto-ATU and keyer
- Accessories
- -
- RigReference ID
- 4375
- MPN
- YAESU-FT-000950
Manuals, diagrams and brochures
- Yaesu FT-950-Brochure PDF - Unknown size, submitted by RigReference
- FT-950 Service Manual PDF - 12.04 MB, submitted by Berend
- FT-950 CAT Manual ENG PDF - 729.0 kB, submitted by BandRunner
- FT-950 Technical Supplement PDF - 8.83 MB, submitted by BandRunner
- FT-950 User PDF - 6.59 MB, submitted by BandRunner
- FT-950 Alignment Menu (hidden) VND.OASIS.OPENDOCUMENT.TEXT - 340.3 kB, submitted by BandRunner
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Pretty good for the price | 1 year ago by BandRunner | |
| Good solid radio | 1 year ago by n5xjt | |
| Yaesu FT950 | 2 years ago by radiomanL | |
| Good beginners radio.... until it fails. | 12 years ago by AK4AT | |
| I love my yaesu ft 950 | 12 years ago by iclord | |
| Best value and superb interface | 14 years ago by KO4GS | |
| Excellent Bang for the Buck! | 14 years ago by KN7S |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-950. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-950 is around:
- EUR 168.00 ~ EUR 590.00
- USD 75.00 ~ USD 503.00
These estimates are based on the following prices:
