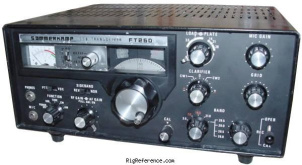

Sommerkamp FT-250

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

10-80 m

Modulations

AM   CW   SSB

Sensitivity

0.5 µV (10 dB S/N)

Selectivity

2.3 kHz (-6 dB), 4 kHz (-60 dB)

Filters

?

Receiver system

Single conversion superheterodyne Tubes

IF-frequencies

9 MHz

Image rejection

50 dB

Audio output

?

Transmitter

TX-range

10-80 m

Modulations

AM   CW   SSB

RF-output

100 W / 240 W (PEP input)

Connections

Antenna

SO-239

Impedance

50-75Ω

Other

-

Electrical

Power requirements

?V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

335 × 140 × 280 mm (13.19 × 5.51 × 11.02 in)

Weight

17.50 kg (38.6 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 197x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4269

MPN

SOMMERKAMP-FT-000250

Manuals, diagrams and brochures

Sommerkamp FT-250 Instruction Manual PDF - 2.63 MB, submitted by Gerd
