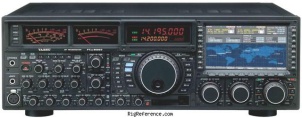

Yaesu FTdx-9000D

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

General coverage

Modulations

AM   FM   CW   SSB   RTTY

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC / 50-54 MHz

Modulations

AM   FM   CW   SSB   RTTY

RF-output

Max 200 W (AM: 75 W), internal PSU version, Max 400 W (AM: 100 W), external PSU version

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 2005 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Balanced microphone jack (XLR). Large multifunction TFT. Data port. PS/2 keyboard jack. Rotator interface jack for direction indication on the TFT. Direct I/O sound card connections. 32-bit IF DSP. IP3 better than +40 dBm! Twin identical RX.

Accessories

-

RigReference ID

4382

MPN

YAESU-FTDX-009000D

Manuals, diagrams and brochures

No manuals yet for the Yaesu FTdx-9000D. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx-9000D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FTdx-9000D in Good condition is around:

• USD 9,699
