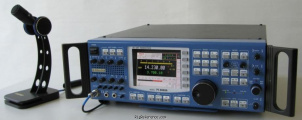

The Hilberling PT-8000B is similar to the PT-8000A except for RF-ouput power. IP3 (HF/6m) +39 dBm New price 2006 in Germany: 10849.-

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
9 kHz - 52 MHz / 142-172 MHz
Modulations
AM   AM-sync   FM   W-FM   CW   USB   LSB
Sensitivity
AM
2 µV (1.8-54 MHz)
1.5 µV (142-172 MHz)
33 µV (9 kHz - 1.8 MHz)

FM
4 µV (1.8-54 MHz)
0.2 µV (142-172 MHz)
28 µV (9 kHz - 1.8 MHz)

SSB/CW
0.2 µV (1.8-54 MHz)
0.18 µV (142-172 MHz)
22 µV (9 kHz - 1.8 MHz)
Selectivity
AM 6 kHz
FM 12 kHz
SSB 2.4 kHz
CW 600 Hz
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 70.7 MHz
2nd: 10.698 (main), 10.702 (sub)
Image rejection
> 70 dB
Audio output
4.8 W (2×2.4 W main/sub)

Transmitter

TX-range
10-160 m + WARC / 6 m / 2 m
Modulations
AM   FM   CW   USB   LSB
RF-output
HF/6 m: 600 W, 2 m: 10 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
Separate mains PSU
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
425 × 175 × 465 mm (16.73 × 6.89 × 18.31 in) Width: 543 mm with rack handles
Weight
25.00 kg (55.2 lbs)
Form factor
Base Station
Manufactured
Between 2006 and 200x in Germany

Other features

Usage
Amateur / Ham radio operators
Features + options
Internal Antenna Tuner (PT-8000A / PT-8000B only)
Dual-RX
Accessories
-
RigReference ID
2954
MPN
HILBERLING-PT-008000B
