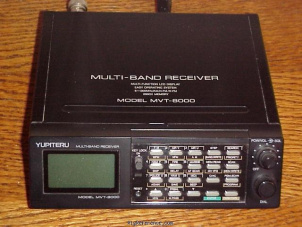

Yupiteru MVT-8000

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 10 / 12.5 / 25 / 50 / 100 kHz

Memories

200 channels in 10 bank(s) @ 15 channels/second

Receiver

RX-range

8-1300 MHz

Modulations

AM   N-FM   W-FM

Sensitivity

FM: 8-1000 MHz: 0.5µV (SINAD 12db)
FM: 1000-1300 MHz: 1.0µV
AM: 0.5µV (S/N 10db)
WFM: 0.75µV (SINAD 12dB)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

700 mW, 8 ohm

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

12V DC

Current drain RX

420 mA max, 210 mA sleep mode

TX

-

Physical

Dimensions (w×h×d)

160 × 45 × 155 mm (6.30 × 1.77 × 6.10 in) excl. protruding parts

Weight

650 gr (1.4 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4411

MPN

YUPITERU-MVT-008000

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yupiteru MVT-8000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yupiteru MVT-8000 in Good condition is around:

• EUR 74

Price History Chart

These estimates are based on the following prices:
