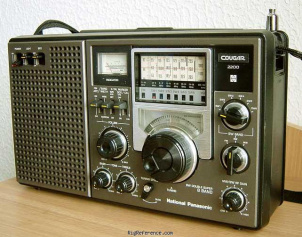

The Panasonic RF-2200 receives the AM, FM and shortwave bands. Ranges: .525-16.1, 3.9-8, 8-12, 12-16, 20-24 and 24-28 MHz plus FM. This radio features a very accurate analog dial. It has an S-Meter, BFO, FM AFC, Bass, Treble, Record Jack, Two Tuning Rates, Dial Lamp, Dial Lamp Switch, RF Gain, Calibrator 125/500 kHz and External Antenna Terminals. This dual conversion circuit features wide and narrow selectivity (5/3.4 kHz -6dB). The rotatable ferrite rod antenna makes the RF2200 a strong medium wave performer. Early production models where gray (as image above), later models where black.
The European counterpart is called the National / Panasonic DR-22.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.525-1.61 / 3.9-28 / 87.5-108 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- FM: 2µV
MW: 14µV
SW: 0.5µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- Double Superheterodyne
- IF-frequencies
- FM: 10.7 MHz
MW/SW 1st: 1.985 MHz
SW 2nd: 455 kHz - Image rejection
- ?
- Audio output
- 3W max, 8 ohm
Connections
- Antenna
- Built-in ferrite bar + Built-in telescopic
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains or 4LR20 / D
- Current drain RX
- 7W
- TX
- -
Physical
- Dimensions (w×h×d)
- 305 × 200 × 100 mm (12.01 × 7.87 × 3.94 in)
- Weight
- 3.40 kg (7.5 lbs) without batteries
- Form factor
- Handheld
- Manufactured
- Between 1978 and 1979 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4431
- MPN
- NATIONAL-/-PANASONIC-RF-002200
