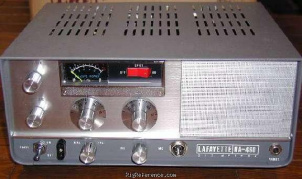

Lafayette HA-460

General characteristics

HAM bands

6m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

50-52 MHz

Modulations

AM

Sensitivity

Less then 1 mV for 10 dB S/N

Selectivity

±3kHz at 6dB down, less then ±12kHz at 50dB down

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 5745 kHz
2nd: 455 kHz

Image rejection

?

Audio output

4 W @ 8 ohms

Transmitter

TX-range

50-52 MHz

Modulations

AM

RF-output

10

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12V DC or mains (160 W max)

Current drain RX

?

TX

14 A max

Physical

Dimensions (w×h×d)

308 × 130 × 235 mm (12.13 × 5.12 × 9.25 in)

Weight

8.60 kg (19.0 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4482

MPN

LAFAYETTE-HA-000460

Manuals, diagrams and brochures

Lafayette HA-460 Installation and Operating Manual PDF - 373.2 kB, submitted by Gerd



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lafayette HA-460. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Lafayette HA-460 is around:

• USD 13.00

Price History Chart

These estimates are based on the following prices:
