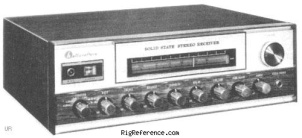

Hallicrafters CR3000

Desktop HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

The Hallicrafters CR3000 is a unique tabletop receiver covering longwave, AM, FM stereo broadcast band plus shortwave. The shortwave ranges are: 2-4, 5.85-10.3 and 11.4-18.2 MHz. The bands are displayed on an analog rotary dial. Features include: ¼" Headphone Jack and S-Meter, Bass, Treble, BFO, RF Gain and Loudness. Enjoy full rich sound with 10 watts RMS per channel.

There are inputs for: magnetic cartridge phonograph, ceramic cartridge phonograph and tape recorder. Stereo outputs include: Tape Recorder and Speakers. There is a Ferrite rod on the rear panel for longwave and medium wave and terminals for FM and shortwave antennas.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: None

Receiver

RX-range: 0.535-1.605 / 2-4 / 5.85-10.3 / 11.4-18.2 MHz
88-108 / 185-400 MHz
Modulations: AM W-FM Stereo
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 1st: 10.7 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: Requires external speakers

Connections

Antenna: Built-in ferrite bar
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 400 × 124 × 310 mm (15.75 × 4.88 × 12.20 in)
Weight: 7.50 kg (16.5 lbs)
Form factor: Base Station
Manufactured: Between 195x and 196x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4579
MPN: HALLICRAFTERS-CR003000

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters CR3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Hallicrafters CR3000 in Good condition is around:

USD 18

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2018	USD 20.00	Used / Good	Tony
