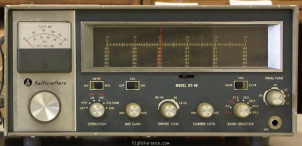

Hallicrafters HT-46

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

Less than 500 cycles drift in first hour, after 15 minutes warm-up, and less than 100 cycles per hour thereafter

Tuning steps

Continuous

Memories

None

Transmitter

TX-range

10-80 m

Modulations

AM   CW   SSB

RF-output

100 W (AM 35 W)

Connections

Antenna

RCA (Tulip)

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (117 V AC, 50/60 cycles)

Current drain RX

-

TX

350 W

Physical

Dimensions (w×h×d)

333 × 149 × 279 mm (13.11 × 5.87 × 10.98 in)

Weight

?

Form factor

Base Station

Manufactured

Between 1965 and 196x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

HA-16 VOX ADAPTOR

RigReference ID

4581

MPN

HALLICRAFTERS-HT-000046
