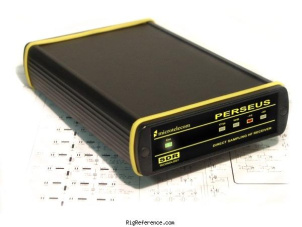

Perseus SDR

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m  2000m

Frequency stability

±1 ppm after calibration

Tuning steps

?

Memories

?

Receiver

RX-range

0.01-30 MHz

Modulations

AM   AM-sync   N-FM   CW   USB   LSB

Sensitivity

0.49 µV (SSB, S+N/N=10 dB, Preamp ON, Dither OFF)

Selectivity

Software Defined (>100 dB Stop Band Attenuation)

Filters

0-1.7, 1.7-2.1, 2.1-3.0, 3.0-4.2, 4.2-6.0, 6.0-8.4, 8.4-12.0, 12-17, 17-24, 24-32 or OFF (0-40 MHz Wide-Band Mode)

Receiver system

DSP

IF-frequencies

?

Image rejection

90 dB

Audio output

?

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

5V DC

Current drain RX

700 mA

TX

-

Physical

Dimensions (w×h×d)

110 × 36 × 185 mm (4.33 × 1.42 × 7.28 in)

Weight

380 gr (13.4 oz)

Form factor

Headless

Manufactured

Between 2007 and 20xx in Italy

Other features

Usage

Amateur / Ham radio operators

Features + options

USB 2.0 interface

Accessories

-

RigReference ID

5008

MPN

PERSEUS-SDR

Manuals, diagrams and brochures

Perseus User Manual PDF - 2.94 MB, submitted by RigReference

Perseus CI-V Interface Reference Manual PDF - 309.0 kB, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Perseus SDR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Perseus SDR in Good condition is around:

• EUR 433
• USD 953
