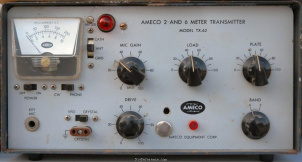

The Ameco TX-62 is a 50-54 / 144-148 MHz transmitter with an RF output of 75 W. It requires Mains power and weighs 8.4 kg. Dimensions are 152 × 292 × 241 mm.
General characteristics
- HAM bands
- 6m 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 50-54 / 144-148 MHz
- Modulations
- AM CW
- RF-output
- 75 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 292 × 152 × 241 mm (11.50 × 5.98 × 9.49 in)
- Weight
- 8.40 kg (18.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5065
- MPN
- AMECO-TX-000062
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ameco TX-62. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
