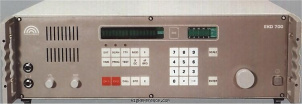

The EKD-700 was only produced in a preliminary series of ten sets and a few prototypes by the Berlin based Funkwerk Köpenik (part of RFT).
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.01 kHz
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 10 kHz - 30 MHz
- Modulations
- AM AM-sync FM CW USB LSB ISB FSK FAX
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ±150 / ±1500 / ±3500 Hz
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 70.2 MHz (?)
2nd: 200 kHz (?) - Image rejection
- ?
- Audio output
- 500 mW
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains (127 or 220V AC) or 24V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 540 × 133 × mm (21.26 × 5.24 × 0.00 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 198x and 199x in East Germany
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5108
- MPN
- RFT-EKD-000700
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFT EKD-700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the RFT EKD-700 is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
