Racal RA-1772

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

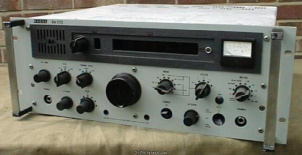

The Racal 1772 is a 19" Rack Mounting high-grade general purpose synthesised solid state communications receiver. Made by Racal Communications in England. Frequency range 15KHz-30MHz displayed digitally on LED type display. Modes LSB, CW, AM. Antenna input 50-75 Ohms, nominal.Sensitivity 1uV. IF filters 0, 1, 3, 8 kHz. The BFO range is +/- 3kHz variable by slow motion control on the front panel. Built-in internal Loudspeaker with provisions for a range of audio outputs, 1mW into 600 Ohms and 1W into 8 Ohms.

Front panel controls consisting of MHz and KHz Frequency selection, RF Tune, AF and IF Gain Controls, AGC, Mode Switch, Meter Switch, BFO, Loudspeaker On/Off Switch, Tuning Rate Switch, Line level pre-sets, Filter Switch, Head-Phone Jack, Meter, and Power On/Off Switch. Antenna and mains sockets at the rear of the unit.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.015-30 MHz
Modulations: AM CW USB LSB
Sensitivity: 1 µV
Selectivity: ?
Filters: 1 / 3 / 8 kHz
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 1 W into 8 ohms

Connections

Antenna: -
Impedance: 50-75Ω
Other: -

Electrical

Power requirements: Mains (100-125 VAC or 200-250 VAC)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 483 × 178 × 413 mm (19.02 × 7.01 × 16.26 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Great Britain

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 5119
MPN: RACAL-RA-001772

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Racal RA-1772. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Racal RA-1772 is around:

USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.
