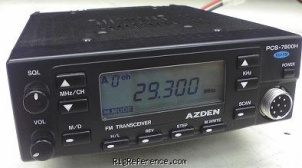

Azden PCS-7800H

Mobile Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Azden PCS-7800H rigs and spare parts on eBay

The Azden PCS-7800H is a mobile transceiver with a frequency range of 28-29.7 MHz for both reception and transmission. It offers an image rejection of 60 dB and has an RF output of 50 W on high power and 5 W on low power. The transceiver requires 13.8V DC +/- 15% and weighs 1.4 kg. Its dimensions are 50 × 140 × 205 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 28-29.7 MHz
Modulations: FM
Sensitivity: 0.16 µV (12 dB SINAD)
Selectivity: 12 kHz (-6 dB), 30 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 28-29.7 MHz
Modulations: FM
RF-output: High: 50 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: Max 300 mA
TX: Max 10 A

Physical

Dimensions (w×h×d): 140 × 50 × 205 mm (5.51 × 1.97 × 8.07 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 200x and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5148
MPN: AZDEN-PCS-007800H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
