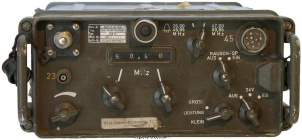

Very ruggedly built field radio made for the German armed forces. Covers 10 and 6 meter ham bands and even CB. RF power limited to 1 W. The SEM-35 requires 24V DC but will also work from 13.8V. Internal battery compartment takes regular U2 type batteries. Outer casing is waterproof.
General characteristics
- HAM bands
- 11m (CB) 6m 10m
- Frequency stability
- ±3.5 kHz from -40 to +60°C
- Tuning steps
- 50 kHz
- Memories
- 880 channels in 1 bank(s)
Receiver
- RX-range
- 26.000-69.950 MHz
- Modulations
- FM
- Sensitivity
- 0.5 µV (10 dB S/N)
- Selectivity
- better than 80 dB @ ±50 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 50 mW into 600 ohm
Transmitter
- TX-range
- 26.000-69.950 MHz
- Modulations
- FM
- RF-output
- 150 mW / 1 W
Connections
- Antenna
- BNC + Proprietary (military)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24V DC (21-29V DC, 32V max); 13.8V does also work 12 U2-cell batteries (NiCd)
- Current drain RX
- 60 mA (24V)
- TX
- 240 mA (24V)
Physical
- Dimensions (w×h×d)
- 359 × 270 × 125 mm (14.13 × 10.63 × 4.92 in)
- Weight
- 12.80 kg (28.2 lbs) with antenna and batteries
- Form factor
- Mobile
- Manufactured
- Between 196x and 19xx in Germany
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5168
- MPN
- MILITARY-SEM-000035
Manuals, diagrams and brochures
- SEM-35 Manpack description from VMARS (aug. 2000) PDF - Unknown size, submitted by RigReference
- Upload relevant documents
