Sailor RT144B

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Sailor RT144B rigs and spare parts on eBay

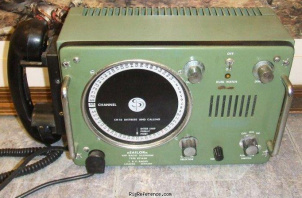

The Sailor RT144B is a Mobile VHF Transceiver. It covers All International Maritime VHF channels for both transmit and receive. The tuning steps are 25 kHz and the RF output is 25 W. It operates on 12/24 V DC and has a maximum current drain of 5 A during transmit. Features include Dual Watch and Instant Channel 16. Dimensions are 220 × 320 × 165 mm. The radio weighs 9 kg.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 25 kHz
Memories: ?

Receiver

RX-range: All International Maritime VHF channels
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: All International Maritime VHF channels
Modulations: FM
RF-output: 25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12/24 V DC
Current drain RX: ?
TX: 5 A max

Physical

Dimensions (w×h×d): 320 × 220 × 165 mm (12.60 × 8.66 × 6.50 in)
Weight: 9.00 kg (19.9 lbs)
Form factor: Mobile
Manufactured: Between 197x and 198x in Denmark

Other features

Usage: Marine / Navy
Features + options: Dual Watch
Instant Channel 16
Accessories: -
RigReference ID: 5325
MPN: SAILOR-RT000144B
