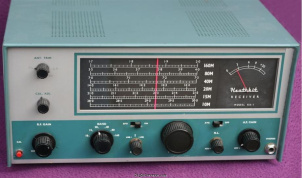

Heathkit RA-1

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Heathkit RA-1 rigs and spare parts on eBay

Find the Heathkit RA-1 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands: 160m 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 160-10 m
Modulations: AM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: external speaker required

Connections

Antenna: Clamps / screws + TV-antenne
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 19xx and 19xx in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5365
MPN: HEATHKIT-RA-000001

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Heathkit RA1 Manual PDF - 1.41 MB, submitted by Simon Gough
