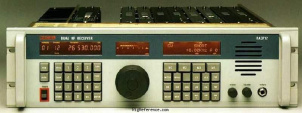

The Racal RA-3712 is a desktop HF/VHF receiver covering 0.5-40 MHz. It features 1 memory bank with 100 channels and requires mains power. The receiver weighs 20 kg and has dimensions of 133 × 483 × 450 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-40 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 90 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 483 × 133 × 450 mm (19.02 × 5.24 × 17.72 in)
- Weight
- 20.00 kg (44.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Great Britain
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5382
- MPN
- RACAL-RA-003712
