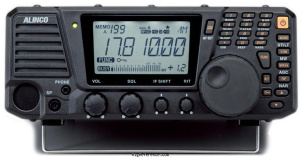

Receiver version of the Alinco DX-SR8.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)
Frequency stability
± 1 p.p.m.
Tuning steps
?
Memories
600 channels in 3 bank(s)

Receiver

RX-range
0.15-35 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
AM
0.15-1.8 MHz: 10 µV
1.8-30 MHz: 2 µV
FM 28-30 MHz: 0.25 µV
SSB 0.15-1.8 MHz: 1 µV
CW 1.8-30 MHz: 0.25 µV
Selectivity
AM Narrow 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
AM/FM 6 kHz (-6 dB), 18 kHz (-60 dB)
SSB/CW 2.4 kHz (-6 dB), 4.5 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 71.75 MHz
2nd: 455 kHz
Image rejection
70 dB
Audio output
More than 2.0 W into 8 ohm 10% THD

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7 - 15.8V DC
Current drain RX
1 A max
TX
-

Physical

Dimensions (w×h×d)
240 × 100 × 293 mm (9.45 × 3.94 × 11.54 in) including protrusions
Weight
4.10 kg (9.0 lbs)
Form factor
Base Station
Manufactured
Between 2010 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5395
MPN
ALINCO-DX-R000008

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DX-R8. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DX-R8 is around:

  • EUR 129.00 ~ EUR 234.00
  • USD 381.00 ~ USD 117.00
  • AUD 739.00 ~ AUD 122.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 EUR 235.00 Used / Good SWL_de
2020 USD 399.00 New / Mint GigaParts
2018 AUD 900.00 New / Good Gerry_AU
2013 USD 369.95 Used / Good universal-radio
2011 USD 500.00 New / Mint vargasvidal
