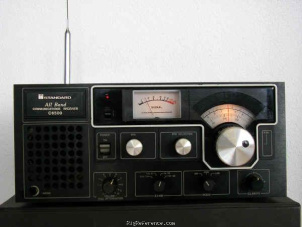

Standard C-6500

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

1.5-30 MHz

Modulations

AM   USB   LSB

Sensitivity

AM
< 1,5 MHz: 5 µV
1,5 - 30 MHz: < 1 µV
SSB
< 1,5 MHz: 1 µV
1,5 - 30 MHz: < 0,5 µV

Selectivity

AM: 7 / 13 kHz (-6 / -30 dB)
SSB 4 / 8 kHz (-6 / -30 dB)

Filters

?

Receiver system

Wadley Loop

IF-frequencies

1st: 2.5 MHz
2nd: 455 kHz

Image rejection

?

Audio output

?

Connections

Antenna

SO-239 + Built-in telescopic

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains / 12 V DC / 8 × UM-1 cells

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

340 × 156 × 290 mm (13.39 × 6.14 × 11.42 in)

Weight

6.40 kg (14.1 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Clarify control

Accessories

-

RigReference ID

5474

MPN

STANDARD-C-006500

Manuals, diagrams and brochures

No manuals yet for the Standard C-6500. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard C-6500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Standard C-6500 in Good condition is around:

• USD 114

Price History Chart

These estimates are based on the following prices:
