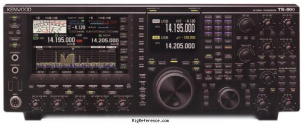

The Kenwood TS-990S dual receiver features a 2 LCD displays. The rig will cover the HF amateur bands plus 6 meters.

A low-power version has also been announced, the Kenwood TS-990D with a max. output of 50 W.

This radio will be the top-of-the-range flagship model in the Kenwood Amateur radio line-up. A prototype is expected to be on display at the 2012 Dayton Hamvention. RF power is adjustable from 2 to 200 watts. This radio features a built-in automatic antenna tuner and built in AC power supply. It has a serial port, USB ports and Ethernet port.

Expected release date: Feb. 2013

General characteristics

HAM bands
160m  80m  40m  20m  15m  6m  10m
Frequency stability
± 0.1 p.p.m. TCXO
Tuning steps
?
Memories
?

Receiver

RX-range
General coverage
Modulations
AM   FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
270 / 500 Hz / 2.7 / 6 kHz
Receiver system
DSP
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
160-10 + 6m
Modulations
AM   FM   CW   USB   LSB
RF-output
200 W max

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 2013 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
Dual TFT display (7" + 3.5")
Band scope
Audio scope
Dual receivers
Triple 32-bit DSPs
Internal automatic antenna tuner (ATU)
Accessories
-
RigReference ID
5611
MPN
KENWOOD-TS-000990S

Manuals, diagrams and brochures

TS-990S Brochure PDF - 4.07 MB, submitted by Peter Dawson

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-990S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-990S is around:

  • USD 4927.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 6000.00 Used / Mint Jim M.
