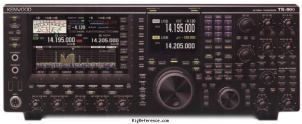

Kenwood TS-990D

General characteristics

HAM bands

160m  80m  40m  20m  15m  6m  10m

Frequency stability

± 0.1 p.p.m. TCXO

Tuning steps

?

Memories

?

Receiver

RX-range

General coverage

Modulations

AM   FM   CW   USB   LSB

Sensitivity

?

Selectivity

?

Filters

270 / 500 Hz / 2.7 / 6 kHz

Receiver system

DSP

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

160-10 + 6m

Modulations

AM   FM   CW   USB   LSB

RF-output

50 W max

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 2013 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual TFT display (7" + 3.5")
Band scope
Audio scope
Dual receivers
Triple 32-bit DSPs
Internal automatic antenna tuner (ATU)

Accessories

-

RigReference ID

5612

MPN

KENWOOD-TS-000990D
