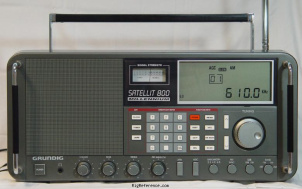

The Tecsun HAM-2000 is a re-branded Grundig Satellit 800.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
70 channels in 1 bank(s)

Receiver

RX-range
0.1-30 MHz (AM, SSB)
87-108 MHz (FM)
118-137 MHz (AM)
Modulations
AM   FM   SSB
Sensitivity
AM 0.1-30 MHz: 2 µV (10 dB S+N/N)
AM 118-137 MHz: 4 µV (1000 Hz, 30% mod)
W-FM: 4 µV (20 dB S/N, mono)
SSB: 0.5 µV (10 dB S+N/N)
Selectivity
AM/SSB (BW=6 kHz)
>6 kHz (-6 dB), <12 kHz (-60 dB)
AM/SSB (BW=4 kHz)
>4 kHz (-6 dB), <9 kHz (-60 dB)
AM/SSB (BW=2.3 kHz)
>2.3 kHz (-6 dB), <5 kHz (-60 dB)
Filters
?
Receiver system
PLL
IF-frequencies
?
Image rejection
>60 dB (0.1-30 / 118-137 MHz) >50 dB (87-108 MHz)
Audio output
Internal speaker / headphones

Connections

Antenna
F-type + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
9V DC (Mains or 6×D cells)
Current drain RX
510-830 mA
TX
-

Physical

Dimensions (w×h×d)
506 × 235 × 226 mm (19.92 × 9.25 × 8.90 in)
Weight
6.60 kg (14.6 lbs) with power supply
Form factor
Portable
Manufactured
Between 200x and 200x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
ANL
Dual clock
Accessories
-
RigReference ID
5650
MPN
TECSUN-HAM-002000
