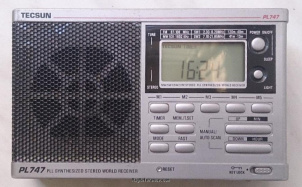

Tecsun PL747

Portable HF/VHF Receiver

Specs Manuals (0) Reviews (1) Prices (1) Compare

Find Tecsun PL747 rigs and spare parts on eBay

The Tecsun PL747 is a portable receiver covering FM 87.5-108 MHz, MW 531-1602 kHz, SW1 2.300-6.200 MHz and SW2 7.100-21.850 MHz. It features a PLL receiver system with 1 memory bank and 20 memory channels. Audio output is via a ф57mm 16Ω 0.3W speaker. The radio requires 4.5 V DC power from 3×AA batteries and weighs 200 gr (excl. batteries). Dimensions are 85 × 140 × 30 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: FM 87.5-108 MHz
MW 531-1602 kHz
SW1 2.300-6.200 MHz
SW2 7.100-21.850 MHz
Modulations: AM FM SSB
Sensitivity: FM < 10 μV
MW < 3 mV/m
SW < 50 μV
Selectivity: > 20 dB
Filters: ?
Receiver system: PLL
IF-frequencies: ?
Image rejection: ?
Audio output: ф57mm 16Ω 0.3W

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: 4.5 V DC / 3×AA batteries
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 140 × 85 × 30 mm (5.51 × 3.35 × 1.18 in)
Weight: 200 gr (7.1 oz) excl. batteries
Form factor: Portable
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock
Alarm
Sleep timer
Accessories: -
RigReference ID: 5652
MPN: TECSUN-PL000747

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Rating	Title	Submitted
	super radio	5 years ago by g-shock

View all Tecsun PL747 reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL747. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Tecsun PL747 is around:

GBP 1.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2005	GBP 30.00	New / Mint	g-shock
