Tecsun PL-757A

Portable HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

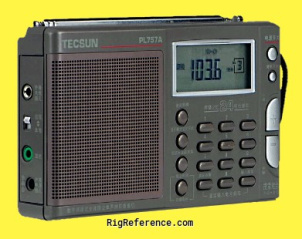

Tecsun PL-757A - Front view - Submitted by Pancho Cheja

The Tecsun PL-757A is a portable receiver. It covers FM 87.5-108 MHz, MW 531-1602 kHz, SW1 2.300-7.800 MHz and SW2 9.100-26.10 MHz. Tuning steps are selectable at 9 / 10 kHz. It features a PLL receiver system. Audio output is via a ф57mm 16Ω speaker with 0.3W output. The PL-757A has 1 memory bank with 24 channels. It is powered by 3×AA batteries and weighs 280 gr. Dimensions are 90 × 145 × 30 mm. Features include a clock, alarm and sleep timer.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 9 / 10 kHz
Memories: 24 channels in 1 bank(s)

Receiver

RX-range: FM 87.5-108 MHz
MW 531-1602 kHz
SW1 2.300-7.800 MHz
SW2 9.100-26.10 MHz
Modulations: AM FM SSB
Sensitivity: FM < 10 μV
MW < 3 mV/m
SW < 50 μV
Selectivity: ?
Filters: ?
Receiver system: PLL
IF-frequencies: ?
Image rejection: ?
Audio output: ф57mm 16Ω 0.3W

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: 3×AA batteries
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 145 × 90 × 30 mm (5.71 × 3.54 × 1.18 in)
Weight: 280 gr (9.9 oz)
Form factor: Portable
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock
Alarm
Sleep timer
Accessories: -
RigReference ID: 5653
MPN: TECSUN-PL-000757A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL-757A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Tecsun PL-757A is around:

USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.
