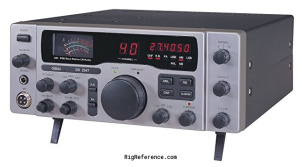

The Galaxy DX-2547 is a base station transceiver. It covers 26.695-27.845 MHz for both receive and transmit. Frequency stability is 0.001%. Tuning steps are channelized. The IF frequencies are 1st: 10.695 MHz and 2nd: 455 kHz. Image rejection is -50 dB. RF output power is 4 W AM and 12 W PEP SSB. Audio output is 2.5W @ 10% THD. It features 1 memory bank with 40 channels. Power requirements are Mains / 13.8 V DC. Current drain is 1 A max in receive and 3.5 A max in transmit. Dimensions are 135 × 285 × 342 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- 0.001%
- Tuning steps
- Channelized
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 26.695-27.845 MHz
- Modulations
- AM SSB
- Sensitivity
- < 0.5 µV / < 0.15 µV for 10 dB S/N (AM/ SSB)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 1st: 10.695 MHz
2nd: 455 kHz - Image rejection
- -50 dB
- Audio output
- 2.5W @ 10% THD
Transmitter
- TX-range
- 26.695-27.845 MHz
- Modulations
- AM SSB
- RF-output
- AM: 4 W / SSB: 12 W PEP
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains / 13.8 V DC
- Current drain RX
- 1 A max
- TX
- 3.5 A max
Physical
- Dimensions (w×h×d)
- 285 × 135 × 342 mm (11.22 × 5.31 × 13.46 in)
- Weight
- 5.40 kg (11.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5736
- MPN
- GALAXY-DX-002547
Manuals, diagrams and brochures
- Galaxy DX-2547 User Manual PDF - 464.8 kB, submitted by RigReference
