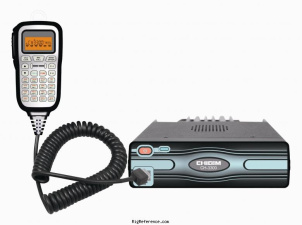

The Chicom CH-3300H is a 136-174 MHz transceiver. It features a double conversion superheterodyne receiver system with IF frequencies of 46.35MHz / 450kHz. The RF output power is selectable at 5, 10, 25 or 65 W. Audio output is 4.5W. This transceiver has 1 memory bank with 207 channels. It requires 13.8 V DC ±15%. Current drain in receive mode is 0.4 ~ 1.5 A and 11 A max in transmit mode. Dimensions are 40 × 140 × 162 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ± 3 p.p.m.
- Tuning steps
- ?
- Memories
- 207 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM N-FM
- Sensitivity
- ≤ 0.18μV (12dB SINAD)
- Selectivity
- Wide
6 kHz @ -6 dB
14 kHz @ -60 dB
Narrow
3 kHz @ -6 dB
9 kHz @ -60 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 46.35MHz / 450kHz
- Image rejection
- ?
- Audio output
- 4.5W typ. (10% dist. 4Ω load)
Transmitter
- TX-range
- 136-174 MHz
- Modulations
- FM N-FM
- RF-output
- 5 / 10 / 25 / 65 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 0.4 ~ 1.5 A
- TX
- 11 A max
Physical
- Dimensions (w×h×d)
- 140 × 40 × 162 mm (5.51 × 1.57 × 6.38 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5914
- MPN
- CHICOM-CH-003300H
