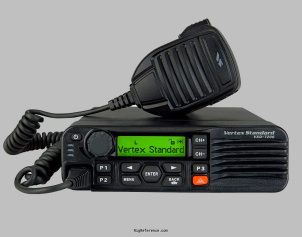

The Vertex Standard VXD-7200 is a dual band FM transceiver. It covers 134-174 / 403-470 / 450-512 MHz for both receive and transmit. Frequency stability is ± 0.5 p.p.m. with tuning steps of 12.5 / 20 / 25 kHz. RF output is VHF: 1/45 W, UHF: 1/40 W. Audio output is 3 W internal and 13 W external. It has 1 memory bank with 512 channels. Power requirements are 13.8 V DC ± 20%. Current drain is 810 mA (receive) and 14.5 A max (transmit). Dimensions are 175 × 51 × 206 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 0.5 p.p.m.
- Tuning steps
- 12.5 / 20 / 25 kHz
- Memories
- 512 channels in 1 bank(s)
Receiver
- RX-range
- 134-174 / 403-470 / 450-512 MHz
- Modulations
- FM DMR
- Sensitivity
- Analogue 12dB SINAD: 0.3 μV 0.22 μV typical
Digital: 5% BER: 0.3 μV - Selectivity
- TIA603:
VHF: 65 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 65 dB @ 12.5 kHz, 75 dB @ 25 kHz
TIA603C:
VHF: 50 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 50 dB @ 12.5 kHz, 75 dB @ 25 kHz - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- 3 W internal, 13 W external
Transmitter
- TX-range
- 134-174 / 403-470 / 450-512 MHz
- Modulations
- FM DMR
- RF-output
- VHF: 1/45 W, UHF: 1/40 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ± 20%
- Current drain RX
- 810 mA, 2A max
- TX
- 14.5 A max
Physical
- Dimensions (w×h×d)
- 51 × 175 × 206 mm (2.01 × 6.89 × 8.11 in)
- Weight
- 1.80 kg (4.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2013 and 201x
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6043
- MPN
- VERTEX-STANDARD-VXD-007200
Manuals, diagrams and brochures
- Vertex VXD-7200 Series Product Sheet PDF - 685.6 kB, submitted by Pancho Cheja
- Vertex VXD-7200 Series Owners Manual PDF - 5.75 MB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Vertex Standard VXD-7200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Vertex Standard VXD-7200 is around:
- USD 219 ~ USD 406
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
