Samcom AM-400UV

Mobile dual-band transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Samcom AM-400UV rigs and spare parts on eBay

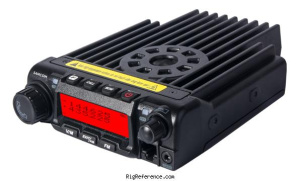

The Samcom AM-400UV is a mobile dual-band transceiver. It covers 76-108 MHz, 136-174 MHz and 400-480 MHz for receive and transmits on 136-174 MHz and 400-470 MHz. The radio has a maximum RF output of 50 W. It features 200 memory channels in 1 memory bank, alphanumeric name tags, 2-Tone, 5-Tone, 50 CTCSS, 114 DCS and DTMF/ANI decode. The AM-400UV also includes a built-in FM radio receiver.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 12.5 / 25 kHz
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 76-108 MHz
136-174 MHz
400-480 MHz
Modulations: FM W-FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 MHz
400-470 MHz
Modulations: FM
RF-output: 50 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Mobile
Manufactured: Between 201x and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Robust, rugged and heavy-duty design
Alphanumeric name tags
2-Tone, 5-Tone, 50 CTCSS, 114 DCS and DTMF/ANI decode
Large, bright LCD and easy-to-operate backlit keys
FM radio receiver
Accessories: -
RigReference ID: 6115
MPN: SAMCOM-AM-000400UV
