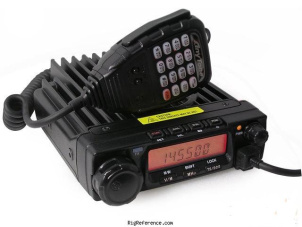

Anytone AT-588 VHF

General characteristics

HAM bands

2m

Frequency stability

± 2.5 p.p.m.

Tuning steps

5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz

Memories

200 channels in 1 bank(s)

Receiver

RX-range

134-174 MHz

Modulations

AM   FM   N-FM

Sensitivity

W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)

Selectivity

12.5 / 25 kHz

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

≥ 60 dB

Audio output

2 W @ 10% THD

Transmitter

TX-range

134-174 MHz

Modulations

FM   N-FM

RF-output

VHF: 10 / 25 / 60 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC (±15%)

Current drain RX

600 mA

TX

9 A

Physical

Dimensions (w×h×d)

145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)

Weight

1.20 kg (2.6 lbs)

Form factor

Mobile

Manufactured

Between 201x and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS / DCS

Accessories

-

RigReference ID

6162

MPN

ANYTONE-AT-000588-VHF

Manuals, diagrams and brochures

No documents available for this particular model.
