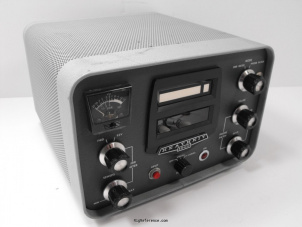

The Heathkit SB-630 is a 160-6 meters transceiver. It features a clock and alarm. The radio weighs 4.5 kg and has dimensions of 171 × 254 × 279 mm. It operates on mains power.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Frequency range
- Range
- 160-6 m
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 254 × 171 × 279 mm (10.00 × 6.73 × 10.98 in)
- Weight
- 4.50 kg (9.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Clock
Alarm - Accessories
- -
- RigReference ID
- 6302
- MPN
- HEATHKIT-SB-000630
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
