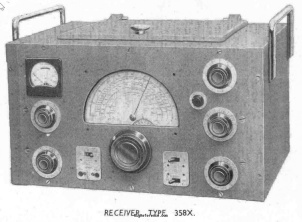

Eddystone 358

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

40 kHz - 31 MHz in 10 bands

Modulations

AM   CW

Sensitivity

3 µV above 1500 kHz
8 µV for lower frequencies

Selectivity

2 kHz @ -2.5 dB
5 kHz @ -35 dB

Filters

?

Receiver system

Superheterodyne

IF-frequencies

450 kHz

Image rejection

?

Audio output

1.5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

520 × 305 × 342 mm (20.47 × 12.01 × 13.46 in)

Weight

22.90 kg (50.5 lbs)

Form factor

Base Station

Manufactured

Between 194x and 194x in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6346

MPN

EDDYSTONE-000358

Manuals, diagrams and brochures

Eddystone 358 Series Receivers PDF - 2.56 MB, submitted by RigReference



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone 358. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
