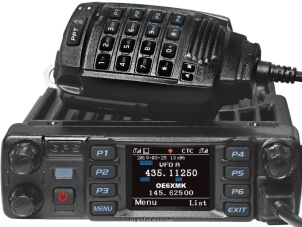

Anytone AT-D578UV

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

5 / 6.25 kHz

Memories

4000 channels in 250 bank(s)

Receiver

RX-range

87.5-108 / 136-174 / 400-480 MHz

Modulations

FM   N-FM   W-FM   DMR

Sensitivity

Analog (12 dB SINAD)
≤ 0.25 µV (Wide Band)
≤ 0.35 µV (Narrow Band)
Digital
0.3 µV / -117.4 dBm (BER 5%), 0.7uV/-110dBm (BER 1%)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

2 W

Transmitter

TX-range

144-146 / 430-440 MHz (Europe)

Modulations

FM   N-FM   DMR

RF-output

5 / 10 / 25 / 50 W (UHF: 45 W)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±20%

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Mobile

Manufactured

Between 2019 and 202x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

1.77" color LCD. CTCSS/PL and DCS. DTMF. 2-tone/5-tone selcall.
SMS via keyboard. APRS (DMR & FM). Roaming. GPS and Bluetooth.
VFO. VOX. Backlit buttons. Micro-USB. Twin RX (V/U, V/V, U/U).

Accessories

-

RigReference ID

6441

MPN

ANYTONE-AT-D000578UV

Manuals, diagrams and brochures

No manuals yet for the Anytone AT-D578UV. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-D578UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Anytone AT-D578UV in Good condition is around:

• USD 300
• EUR 310 ~ EUR 321
