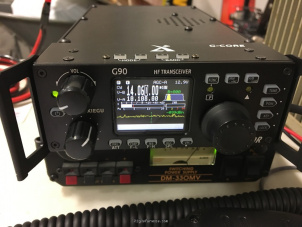

Xiegu G90

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m

Frequency stability

± 2 p.p.m. (after 30 minutes of power on)

Tuning steps

?

Memories

?

Receiver

RX-range

0.5-30 MHz

Modulations

AM   CW   USB   LSB

Sensitivity

≥ 0.25 µV @ 12 dB SINAD (PRE: ON)

Selectivity

?

Filters

Optional: SSB 2.4 kHz / CW 300 Hz

Receiver system

SDR

IF-frequencies

?

Image rejection

?

Audio output

0.5 W @ 4Ω

Transmitter

TX-range

1.8-30 MHz

Modulations

AM   CW   USB   LSB

RF-output

1-20 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12.5-14.5 V DC

Current drain RX

750 mA

TX

8 A

Physical

Dimensions (w×h×d)

120 × 45 × 210 mm (4.72 × 1.77 × 8.27 in)

Weight

1,000 gr (2.2 lbs)

Form factor

Portable

Manufactured

Between 2019 and 202x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

1.8" color LCD-screen
AGC
Noise blanker
S-meter
PO-meter
SWR-meter
CW-keyer
USB control port

Accessories

-

RigReference ID

6480

MPN

XIEGU-G000090

Manuals, diagrams and brochures

Xiegu G-90 User Manual PDF - 11.59 MB, submitted by Gerd



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu G90. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Xiegu G90 is around:

• USD 447.00 ~ USD 410.00

Price History Chart

These estimates are based on the following prices:
